DebugShapes Usage

This simple example demonstrates how to use the DebugShapes helpers to draw debug shapes.

The Program.cs file shows how to:

Initialize the DebugShapes system and enable it for the scene
Draw sphere and circle shapes at specific positions

Note

This example requires the additional NuGet packages Stride.CommunityToolkit.Bepu, Stride.CommunityToolkit.Skyboxes and Stride.CommunityToolkit.Windows. Make sure to install all before running the code.

Note

Other required NuGet package: Stride.CommunityToolkit.DebugShapes.

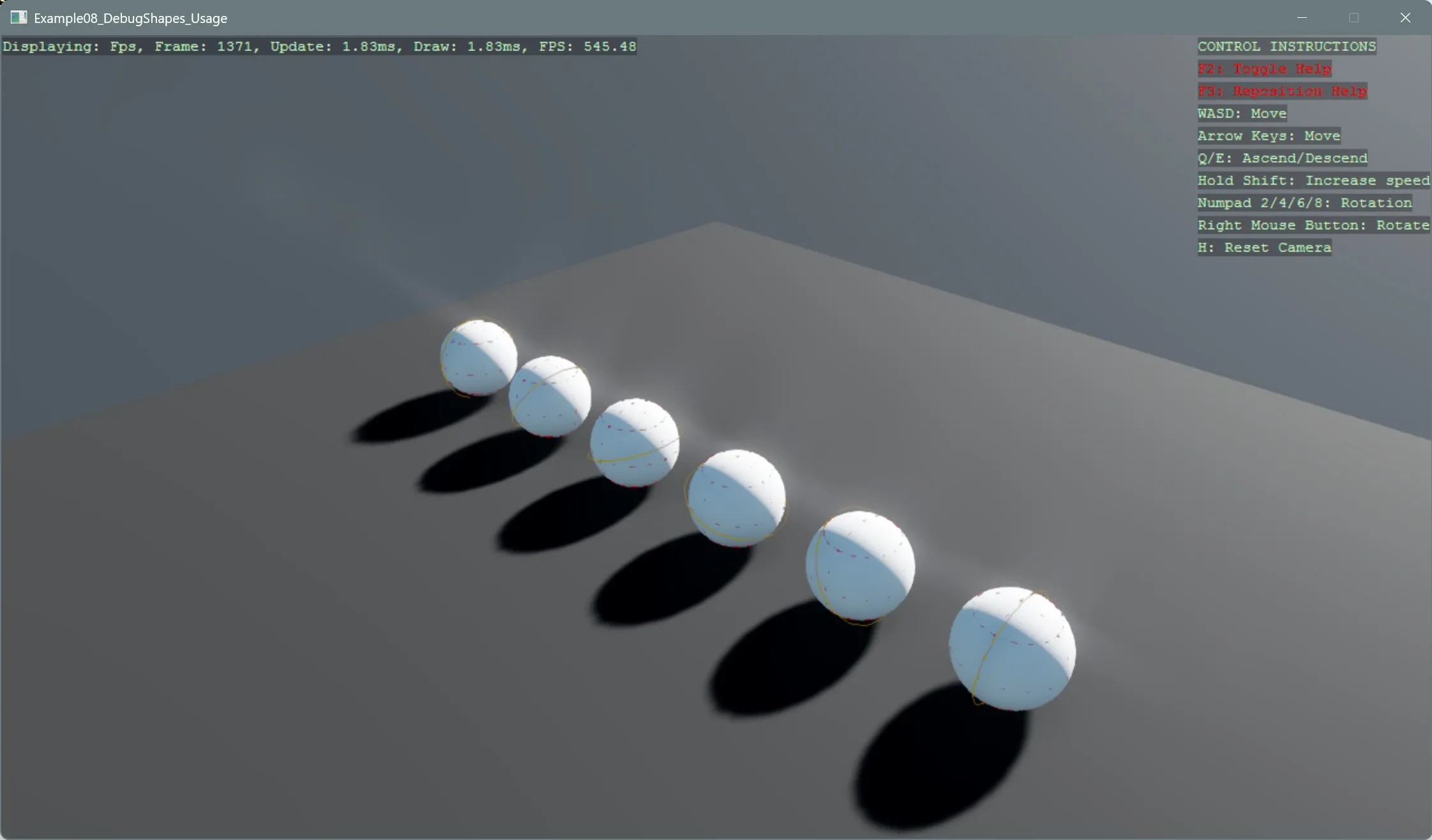

DebugShapes Usage Example

View on GitHub.

using Stride.CommunityToolkit.Bepu;
using Stride.CommunityToolkit.DebugShapes.Code;
using Stride.CommunityToolkit.Engine;
using Stride.CommunityToolkit.Rendering.ProceduralModels;
using Stride.CommunityToolkit.Skyboxes;
using Stride.Core.Mathematics;
using Stride.Engine;
using Stride.Games;

const string SphereEntityName = "Sphere";
ImmediateDebugRenderSystem? debugDraw = null;

// Cache sphere entities to avoid per-frame scene iteration and string comparisons
List<Entity> sphereEntities = new(capacity: 8);

using var game = new Game();

game.Run(start: (Scene rootScene) =>
{
    game.SetupBase3DScene();
    game.AddSkybox();
    game.AddProfiler();
    game.AddDebugShapes();

    CreateSpheres(rootScene, 6);

    debugDraw = game.Services.GetService<ImmediateDebugRenderSystem>();

    if (debugDraw != null)
    {
        debugDraw.Visible = true; // force visible in non-debug builds
        debugDraw.PrimitiveColor = Color.Lime;
    }
}, update: Update);


void CreateSpheres(Scene rootScene, int count)
{
    // Precompute half to avoid recalculating inside loop
    int half = count / 2;

    for (int i = -half; i < half; i++)
    {
        var entity = game.Create3DPrimitive(PrimitiveModelType.Sphere, new() { EntityName = SphereEntityName });
        entity.Transform.Position = new Vector3(i * 0.99f, 8, 0);
        entity.Scene = rootScene;
        sphereEntities.Add(entity);
    }
}

void Update(Scene scene, GameTime gameTime)
{
    if (debugDraw is null) return;

    // Iterate cached list – no allocations, no name checks
    foreach (var entity in sphereEntities)
    {
        var position = entity.Transform.Position; // cache struct access

        debugDraw.DrawSphere(position, 0.5f, Color.Red, solid: false);
        debugDraw.DrawCircle(position, 0.55f, rotation: entity.Transform.Rotation, color: Color.Orange, solid: false);
    }
}
