Procedural geometry

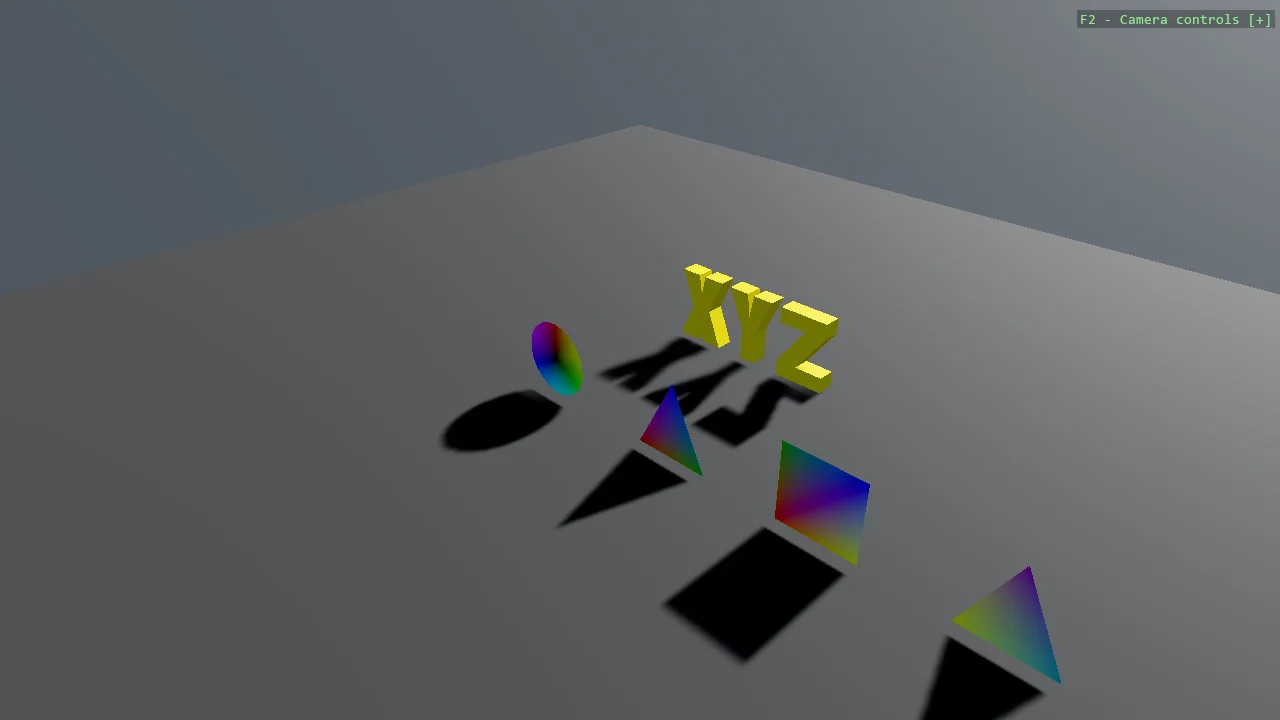

In this example, we delve into creating procedural geometry meshes including a triangle, a plane, and a circle, and integrate them into a Stride scene. Utilizing the MeshBuilder class from the toolkit, the process of crafting and rendering these geometries is streamlined.

Stride UI Example

The MeshBuilder class is employed to define the layout and data for each mesh. For instance, the GiveMeATriangle, GiveMeAPlane, and GiveMeACircle methods demonstrate how to configure vertices, indices, and other properties to form a triangle, a plane, and a circle, respectively.

The Update method demonstrates a dynamic adjustment to the circle's segments count over time, showcasing a simple animation effect.

For more details of MeshBuilder, refer to our MeshBuilder manual.

Tip

Notice the effect of back-face culling when moving the camera around the objects. With the default culling mode enabled, back faces are not rendered, optimizing performance by avoiding the drawing of surfaces that are not visible to the camera.

For open or partially open 3D models, viewing from inside or even from outside through an open area may cause the model to appear incomplete. This is normal behavior since back-face culling intentionally omits surfaces facing away from the camera.

View on GitHub.

using Stride.CommunityToolkit.Bepu;
using Stride.CommunityToolkit.Engine;
using Stride.CommunityToolkit.Rendering.Utilities;
using Stride.CommunityToolkit.Skyboxes;
using Stride.Core.Mathematics;
using Stride.Engine;
using Stride.Games;
using Stride.Graphics;
using Stride.Rendering;
using Stride.Rendering.Materials;
using Stride.Rendering.Materials.ComputeColors;

using var game = new Game();

Entity? circleEntity = null;
Material? sharedMaterial = null;
game.Run(start: Start, update: Update);

void Start(Scene rootScene)
{
    game.SetupBase3DScene();
    game.AddSkybox();

    CreateMeshEntity(game.GraphicsDevice, rootScene, Vector3.Zero, CreateTriangleMesh);
    CreateMeshEntity(game.GraphicsDevice, rootScene, Vector3.UnitX * 2, CreatePlaneMesh);
    CreateMeshEntity(game.GraphicsDevice, rootScene, Vector3.UnitX * 4, CreateNonIndexedTriangleMesh);

    CreateLetterEntity(rootScene);
}

void CreateLetterEntity(Scene rootScene)
{
    // Solid extruded lettering: glyph outlines authored in code, triangulated by ear clipping and
    // extruded through MeshBuilder. Real geometry, so it is lit and shadowed like any other mesh -
    // unlike EntityTextComponent and WorldTextComponent, which draw font glyphs.
    //
    // Standing on the ground behind the gallery row, on purpose: the glyph baseline is at Y = 0,
    // and letters floating in mid-air read strangely when the camera orbits - with nothing
    // anchoring them, the parallax between the front faces and the side walls looks like the
    // letters themselves are turning
    var entity = new Entity { Scene = rootScene, Transform = { Position = new Vector3(-1.5f, 0, -2.5f) } };

    // Not the gallery's shared material: that one reads colour from a vertex stream, and the letter
    // mesh has position and normal only, so it needs a material with a colour of its own
    var model = new Model
    {
        new MaterialInstance { Material = game.CreateMaterial(Color.Gold, metalness: 0.1f, glossiness: 0.4f) },
        new Mesh
        {
            Draw = LetterMeshFactory.CreateTextMeshDraw(game.GraphicsDevice, "XYZ"),
            MaterialIndex = 0
        }
    };

    entity.Add(new ModelComponent { Model = model });
}

void CreateNonIndexedTriangleMesh(MeshBuilder meshBuilder)
{
    // No index buffer at all: with IndexingType.None the vertices are drawn in the order they were
    // added, three per triangle. Simplest possible mesh, at the cost of repeating shared vertices.
    meshBuilder.WithIndexType(IndexingType.None);
    meshBuilder.WithPrimitiveType(PrimitiveType.TriangleList);

    var position = meshBuilder.WithPosition<Vector3>();
    var color = meshBuilder.WithColor<Color>();

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(0, 0, 0));
    meshBuilder.SetElement(color, Color.Yellow);

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(0.5f, 1, 0));
    meshBuilder.SetElement(color, Color.Purple);

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(1, 0, 0));
    meshBuilder.SetElement(color, Color.Teal);
}

void Update(Scene rootScene, GameTime gameTime)
{
    var segments = (int)((Math.Cos(gameTime.Total.TotalMilliseconds / 500) + 1) / 2 * 47) + 3;

    // Rebuilding a mesh means releasing the old one first. ToMeshDraw hands the caller two GPU
    // buffers that no content manager tracks, so removing the entity alone leaks them - and this
    // runs every frame, which is exactly how such a leak becomes megabytes per second.
    if (circleEntity is not null)
    {
        ReleaseMeshBuffers(circleEntity);
        circleEntity.Remove();
    }

    circleEntity = CreateMeshEntity(game.GraphicsDevice, rootScene, Vector3.UnitX * -2, b => CreateCircleMesh(b, segments));
}

// Disposes the GPU buffers behind an entity's meshes. Only for meshes this example built itself -
// content-manager-loaded models manage their own buffers.
static void ReleaseMeshBuffers(Entity entity)
{
    var model = entity.Get<ModelComponent>()?.Model;

    if (model is null) return;

    foreach (var mesh in model.Meshes)
    {
        foreach (var vertexBuffer in mesh.Draw.VertexBuffers)
        {
            vertexBuffer.Buffer.Dispose();
        }

        mesh.Draw.IndexBuffer?.Buffer.Dispose();
    }
}

void CreateTriangleMesh(MeshBuilder meshBuilder)
{
    meshBuilder.WithIndexType(IndexingType.Int16);
    meshBuilder.WithPrimitiveType(PrimitiveType.TriangleList);

    var position = meshBuilder.WithPosition<Vector3>();
    var color = meshBuilder.WithColor<Color>();

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(0, 0, 0));
    meshBuilder.SetElement(color, Color.Red);

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(1, 0, 0));
    meshBuilder.SetElement(color, Color.Green);

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(.5f, 1, 0));
    meshBuilder.SetElement(color, Color.Blue);

    meshBuilder.AddIndex(0);
    meshBuilder.AddIndex(2);
    meshBuilder.AddIndex(1);
}

void CreatePlaneMesh(MeshBuilder meshBuilder)
{
    meshBuilder.WithIndexType(IndexingType.Int16);
    meshBuilder.WithPrimitiveType(PrimitiveType.TriangleList);

    var position = meshBuilder.WithPosition<Vector3>();
    var color = meshBuilder.WithColor<Color>();

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(0, 0, 0));
    meshBuilder.SetElement(color, Color.Red);

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(0, 1, 0));
    meshBuilder.SetElement(color, Color.Green);

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(1, 1, 0));
    meshBuilder.SetElement(color, Color.Blue);

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(1, 0, 0));
    meshBuilder.SetElement(color, Color.Yellow);

    meshBuilder.AddIndex(0);
    meshBuilder.AddIndex(1);
    meshBuilder.AddIndex(2);

    meshBuilder.AddIndex(0);
    meshBuilder.AddIndex(2);
    meshBuilder.AddIndex(3);
}

void CreateCircleMesh(MeshBuilder meshBuilder, int segments)
{
    meshBuilder.WithIndexType(IndexingType.Int16);
    meshBuilder.WithPrimitiveType(PrimitiveType.TriangleList);

    var position = meshBuilder.WithPosition<Vector3>();
    var color = meshBuilder.WithColor<Color4>();

    for (var i = 0; i < segments; i++)
    {
        var x = (float)Math.Sin(Math.Tau / segments * i) / 2;
        var y = (float)Math.Cos(Math.Tau / segments * i) / 2;
        var hsl = new ColorHSV(360f / segments * i, 1, 1, 1).ToColor();

        meshBuilder.AddVertex();
        meshBuilder.SetElement(position, new Vector3(x + .5f, y + .5f, 0));
        meshBuilder.SetElement(color, hsl);
    }

    meshBuilder.AddVertex();
    meshBuilder.SetElement(position, new Vector3(.5f, .5f, 0));
    meshBuilder.SetElement(color, Color.Black.ToColor4());

    for (var i = 0; i < segments; i++)
    {
        meshBuilder.AddIndex(segments);
        meshBuilder.AddIndex(i);
        meshBuilder.AddIndex((i + 1) % segments);
    }
}

Entity CreateMeshEntity(GraphicsDevice graphicsDevice, Scene rootScene, Vector3 position, Action<MeshBuilder> build)
{
    using var meshBuilder = new MeshBuilder();

    build(meshBuilder);

    var entity = new Entity { Scene = rootScene, Transform = { Position = position } };

    // One material shared by every mesh this example builds. A material is a GPU resource like the
    // buffers are, so building one per frame for the animated circle would be the same leak again.
    sharedMaterial ??= CreateMaterial(graphicsDevice);

    var model = new Model
    {
        new MaterialInstance { Material = sharedMaterial },
        new Mesh {
            Draw = meshBuilder.ToMeshDraw(graphicsDevice),
            MaterialIndex = 0
        }
    };

    entity.Add(new ModelComponent { Model = model });

    return entity;
}

static Material CreateMaterial(GraphicsDevice graphicsDevice) => Material.New(graphicsDevice, new MaterialDescriptor
{
    Attributes = new MaterialAttributes
    {
        DiffuseModel = new MaterialDiffuseLambertModelFeature(),
        Diffuse = new MaterialDiffuseMapFeature
        {
            DiffuseMap = new ComputeVertexStreamColor()
        },
    }
});
