Stride + SignalR - Orbital Cargo Deck

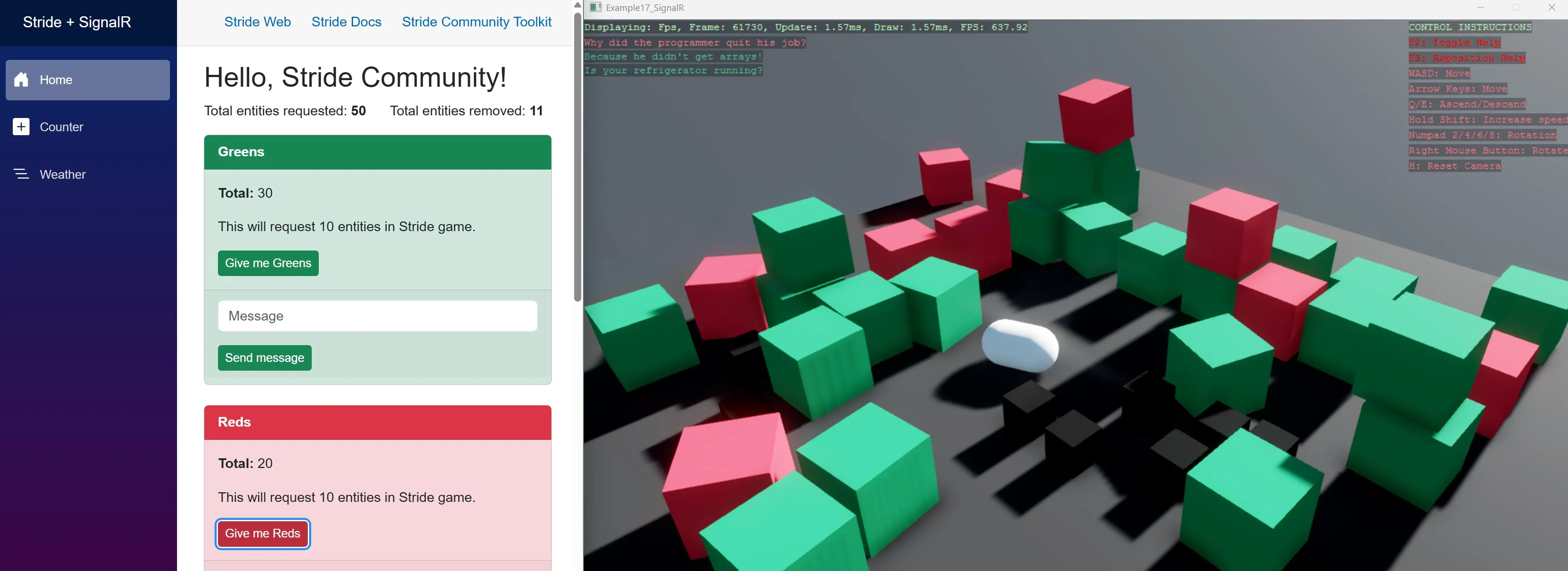

A Stride game and a Blazor page as two consoles of the same orbital cargo deck, talking both ways over a SignalR hub. Either console releases cargo containers through a hatch, clears or shakes the deck, or switches the colour scheme; the game reports every release, landing and loss back to the page, with a census once a second. The game's own console is drawn in the scene from ShapeBatch panels and world text. The hub is optional: the game connects in the background, keeps retrying, and works from the keyboard without one. Start the Blazor app first so the hub exists, then the game.

The Program.cs file shows how to:

Connecting a Stride game to a SignalR hub as an optional feature that retries in the background
Typed contracts shared by game, hub and page, with nameof on every method name
Marshalling hub callbacks onto the game thread: handlers enqueue, the update loop drains
One ordered background queue for everything the game sends
A periodic snapshot so a page that opens late is complete within a second
Two-way state: a colour scheme changed on either side changes the other
An in-scene console from ShapeBatch panels and world text, laid out in board coordinates
Clickable world-space buttons: a pick ray intersected with the board's plane
Detecting landings and losses from body velocity and position, without contact handlers
Shutting a game down cleanly with a live network connection

View on GitHub.

using E13_SignalR.Net;
using E13_SignalR.SignalR;
using E13_SignalR.Station;
using E13_SignalR_Shared;
using Stride.CommunityToolkit.Bepu;
using Stride.CommunityToolkit.Engine;
using Stride.CommunityToolkit.Rendering.Text;
using Stride.Core.Diagnostics;
using Stride.Core.Mathematics;
using Stride.Engine;
using Stride.Games;
using Stride.Input;
using Stride.Rendering.Images;

// An orbital cargo deck with two consoles: this window, and a web page. A hatch above the deck
// releases containers in three sizes and six rusty paints; they drop under physics, skid, stack,
// and sometimes slide off the open edge and are lost. Either console can release, clear, shake and
// recolour; the game reports every release, landing and loss back, plus a census once a second.
//
// The game's console is drawn in the scene: a station board over the deck with the census, bars by
// size and paint, and the scheme buttons - click one - plus a feed beside the deck, all ShapeBatch
// panels and world text in the scheme's colours. Landings, losses and hails show on the deck itself.
//
// The hub is optional. The game connects in the background and keeps trying; with no hub the
// keyboard does everything and the board says LINK OFFLINE. Start the Blazor host to see the
// other console: E13_SignalR_Blazor, then open its page.
//
// Keys: 1 2 3 release small, medium, large - SPACE random - B batch of ten - C clear - X shake -
// T scheme list, then 1-5, or click a scheme on the board. Left-drag carries a container, R turns
// it. Right-drag and WASD fly the camera.

const float HeartbeatSeconds = 1f;

var console = new StationConsole();
var link = new StationLink(ResolveHubUrl(), new StrideLoggerAdapter<SignalRHubClient>(GlobalLogger.GetLogger("SignalR")));

WindowsDpiManager.EnablePerMonitorV2();

// Not `using`: the disposal order at the bottom is deliberate, and `using` would reverse it
var game = new Game();

var station = new StationScene(game);
var deck = new Deck(new ContainerFactory(game));
var commands = new StationCommands(deck, console);

// Built in Start, once there is a scene to put them in
StationBoard? board = null;
FeedBoard? feed = null;
DeckEffects? effects = null;

var uptime = 0f;
var untilHeartbeat = HeartbeatSeconds;

game.Run(new SceneSetup3D
{
    // Space: a near-black clear colour instead of a sky, and the exposure pinned: the default tone map
    // adapts to the average brightness, and against a black sky that drives the deck to white
    ClearColor = new Color(3, 5, 9),
    PostEffects = fx =>
    {
        foreach (var toneMap in fx.ColorTransforms.Transforms.OfType<ToneMap>())
        {
            toneMap.AutoExposure = false;
            toneMap.Exposure = 1f;
        }
    },
    // The station aims its own sun and lays its own deck
    Lighting = null,
    Skybox = null,
    Ground = null
}.UseBepu(), start: Start, update: Update);

// Shutdown order is load-bearing, and so is the fact that neither line awaits.
//
// Game.Dispose tears down the graphics device, which has to happen on the thread that created it.
// Top-level statements run on the main thread only until their first await, and an awaited
// DisposeAsync resumes on a thread-pool thread - so `await using` here, or a `using var game`
// disposed after it, would tear the device down off the main thread and hang the process with the
// window still on screen. Blocking instead keeps both disposals on this thread, and closes the hub
// connection while the game's logger is still alive to report it.
link.DisposeAsync().AsTask().GetAwaiter().GetResult();

game.Dispose();

void Start(Scene scene)
{
    game.Window.Title = $"{Constants.StationName} - Stride + SignalR";
    game.Window.AllowUserResizing = true;

    var labels = new Labels(scene, game, console);

    station.Build(scene, labels, console);

    // The boards face the camera's starting point, so they are read square-on from there
    board = new StationBoard(labels, console, StationScene.BoardCenter, StationScene.CameraPosition - StationScene.BoardCenter);
    feed = new FeedBoard(labels, console, StationScene.FeedCenter, StationScene.CameraPosition - StationScene.FeedCenter);
    effects = new DeckEffects(labels, console);

    // The deck tells the effects, the feed and the hub what happened; it does not know any exists
    deck.Released += container =>
    {
        station.Pulse();

        if (deck.Find(container.Id) is { } live) effects.OnReleased(live, console);

        console.Note($"Released {Describe(container)}", LogKind.Released);
        link.ReportReleased(container);
    };

    deck.Landed += container =>
    {
        effects.OnLanded(container, console);
        console.Note($"Landed {Describe(container)} · {container.AirTime:0.0} s", LogKind.Landed);
        link.ReportLanded(container);
    };

    deck.Lost += container =>
    {
        effects.OnLost(container);
        console.Note($"Lost {Describe(container)}", LogKind.Lost);
        link.ReportLost(container);
    };

    deck.Cleared += removed =>
    {
        effects.OnCleared();
        console.Note($"Deck cleared, {removed} removed", LogKind.Cleared);
        link.ReportCleared(removed);
    };

    // Raised for a choice made here or one that came from the web; reporting it either way is what
    // keeps every open browser tab in the same scheme as the game
    console.SchemeChanged += scheme =>
    {
        labels.Restyle();
        console.Note($"Scheme {scheme.Name}");
        link.ReportScheme(scheme.Name);
    };

    console.Hailed += text =>
    {
        effects.OnHail(console);
        console.Note($"Hail: {text}", LogKind.Hail);
    };

    // The overlay keeps only what is genuinely keyboard help; everything else is on the boards.
    var overlay = DebugOverlay.GetOrCreate(game);
    overlay.SectionGap = 0;
    overlay.AddSection("Station", OverlayLines);

    // A screenshot of an empty deck shows nothing. When the capture harness is driving, drop a
    // batch at once so there is cargo on the deck by the time it takes its frame.
    if (Environment.GetEnvironmentVariable(ScreenshotCapture.OutputPathVariable) is not null)
    {
        deck.ReleaseBatch(24, CommandOrigin.Game);
    }

    link.BeginConnect();
}

void Update(Scene scene, GameTime time)
{
    var deltaSeconds = (float)time.Elapsed.TotalSeconds;

    uptime += deltaSeconds;

    // Web requests first, on this thread, before anything reads the deck this frame
    link.Drain(commands);

    console.Update(game.Input, uptime);

    HandleKeys();

    if (station.Shapes is { } picking && board!.Pick(picking, game.Input) is { } clicked)
    {
        console.Select(clicked);
    }

    deck.Update(deltaSeconds);
    effects!.Update(deltaSeconds, uptime);

    var snapshot = deck.Snapshot(console.Scheme.Name, uptime);

    station.Draw(console, deltaSeconds, uptime);

    if (station.Shapes is { } shapes)
    {
        board!.Draw(shapes, console, snapshot, deck.PendingCount, link.IsConnected, uptime, uptime);
        feed!.Draw(shapes, console, uptime);
        effects.Draw(shapes, console);
    }

    untilHeartbeat -= deltaSeconds;

    if (untilHeartbeat <= 0f)
    {
        untilHeartbeat = HeartbeatSeconds;

        link.ReportDeck(snapshot);
    }
}

void HandleKeys()
{
    var input = game.Input;

    // While the scheme list is open the digits belong to it
    if (!console.IsMenuOpen)
    {
        if (input.IsKeyPressed(Keys.D1)) deck.Release(new ReleaseRequest(ContainerSize.Small), CommandOrigin.Game);
        if (input.IsKeyPressed(Keys.D2)) deck.Release(new ReleaseRequest(ContainerSize.Medium), CommandOrigin.Game);
        if (input.IsKeyPressed(Keys.D3)) deck.Release(new ReleaseRequest(ContainerSize.Large), CommandOrigin.Game);
    }

    if (input.IsKeyPressed(Keys.Space)) deck.Release(new ReleaseRequest(), CommandOrigin.Game);
    if (input.IsKeyPressed(Keys.B)) deck.ReleaseBatch(Constants.BatchSize, CommandOrigin.Game);
    if (input.IsKeyPressed(Keys.C)) deck.Clear();
    if (input.IsKeyPressed(Keys.X)) deck.Shake();
}

IReadOnlyList<TextElement> OverlayLines()
{
    List<TextElement> lines = [];
    lines.AddRange(console.MenuLines());
    lines.AddRange(
    [
        new(["1", "2", "3"], "Drop a container of that size", Color.Gold),
        new("Space", "Drop a random one", Color.Gold),
        new("B", "Drop a batch", Color.Gold),
        new("C", "Clear the deck", Color.Gold),
        new("X", "Shake", Color.Gold),
        new("Click", "Pick a scheme", Color.Gold),
        new("Left drag", "Carry a container; R turns it", Color.Gold),
    ]);

    return lines;
}

static string Describe(ContainerEvent container) => $"#{container.Id} {container.Size.ToString().ToLowerInvariant()} {container.Paint.ToString().ToLowerInvariant()}";

/// <summary>The hub URL: the shared default, unless the environment says otherwise.</summary>
static Uri ResolveHubUrl()
{
    var overridden = Environment.GetEnvironmentVariable(Constants.HubUrlEnvironmentVariable);

    return Uri.TryCreate(overridden, UriKind.Absolute, out var url) ? url : new Uri(Constants.HubBaseUrl, Constants.HubPath);
}

Running it

Three projects, two processes:

Project	What it is
`E13_SignalR_Shared`	The contracts both sides compile against: DTOs, the hub and client interfaces, the colour schemes and paints as hex strings
`E13_SignalR_Blazor`	The ASP.NET host: the hub, which is a relay with no state, and the web console page
`E13_SignalR`	The Stride game

Start E13_SignalR_Blazor first, so the hub exists. The IIS Express profile listens on https://localhost:44369, which is where the game looks by default. On Kestrel the port differs; point the game at it with the STATION_HUB_URL environment variable, for example https://localhost:7167/station.
Start E13_SignalR. The station board's link line turns to LINK ONLINE when the hub answers.
Open the Blazor page. The HUB lamp lights when the page reaches the hub, the GAME lamp when the first census arrives from the game, within a second.

In the game: 1 2 3 release a small, medium or large container, SPACE a random one, B a batch of ten, C clears the deck, X shakes it, T opens the scheme list and 1-5 pick one; clicking a scheme button on the board picks one too. Left-drag carries a container and R turns it. The camera flies with the right mouse button and WASD.

The Blazor host is on GitHub, and so are the shared contracts.

What goes over the wire

Every call is a method on one of two shared interfaces. The hub is Hub<IStationClient> and implements IStationHub; the game and the page send with nameof(IStationHub.Method) and register handlers with nameof(IStationClient.Method), so renaming a method breaks the build on every side at once instead of failing quietly at runtime.

Direction	Hub method	Client method	Payload
Either console to the other	`ReleaseContainer`	`ReleaseRequested`	size and paint, either one `null` for random
	`ReleaseBatch`	`BatchRequested`	a count
	`ClearDeck`	`ClearRequested`
	`ShakeDeck`	`ShakeRequested`
	`SetScheme`	`SchemeRequested`	a scheme name
	`Hail`	`HailReceived`	a line of text for the game's overlay
Game to the pages	`ReportReleased`	`ContainerReleased`	id, size, paint, which console asked
	`ReportLanded`	`ContainerLanded`	the same, plus where and after how long
	`ReportLost`	`ContainerLost`	a container that slid off the open edge
	`ReportCleared`	`DeckCleared`	how many were removed
	`ReportScheme`	`SchemeChanged`	the scheme now in force
	`ReportDeck`	`DeckUpdated`	the census: counts by size and paint, mass, totals, scheme, uptime

The hub relays with Clients.Others, so nothing echoes back to its sender. A scheme change works the same from both sides: the console that chose it applies it at once, the game announces it, and every open page follows. The census is what makes a late page complete: it carries the scheme too, so the hub never has to remember anything.

The threading rule

SignalR delivers messages on its own threads, and the deck may only be touched from the game thread. Every handler the game registers does one thing: it queues a closure. The update loop drains that queue at the top of each frame and replays the closures against the deck. Reports go the other way through one background queue, in order, so a landing can never overtake the release it belongs to.

Shutting down with a live connection has an order to it, and the comments in Program.cs explain why neither disposal awaits.
